HOME > cp > hand deburring tools classic line > Deburring Blades

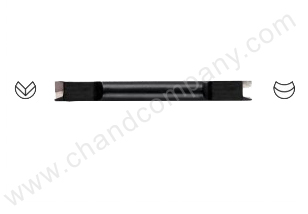

V-2 (23020)

Double ended Deburring blade for single or 2-edge deburring of Sheets / Ribs.
Deburrs both edges of sheet/rib of upto 4 mm. thick from one side
Single edge deburring from other side.
Blade Material : HSS (M2 grade).
Pack Qty. : 1
Wt : 18 gms.

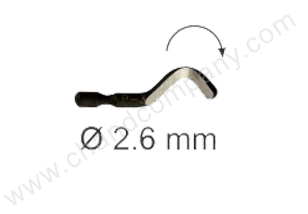

P-3 (11030)

2.6 mm Ø blade for both sides deburring of sheet metal holes upto 6 mm. thickness.
Bade Material : HSS (M2 grade)
Pack Qty : 10
Wt : 18 gms

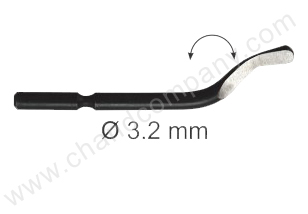

C-35 (12350) Deburring Blade

3.2 mm Ø blade for straight edges on most materials.
Blade Material : HSS (M2 grade)
Pack Qty : 10
Wt : 38 gms

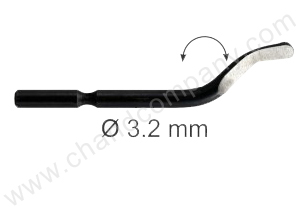

C-20 (12200)

3.2 mm Ø blade for heavy duty application for material having brittle burr such as C.I. & Brass etc.
Blade Material : HSS (M2 grade)
Pack Qty : 10
Wt : 38 gms

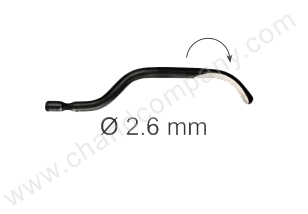

P-6 (11060) Deburring Blade

2.6 mm Ø blade for backside deburring upto 20 mm thickness.
Blade Material : HSS (M2 grade)
Pack Qty : 5
Wt : 30 gms

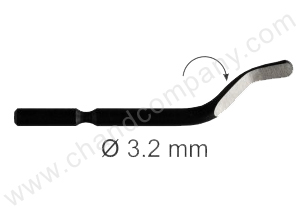

C-10 (12100)

3.2 mm Ø blade for heavy duty application for material forming contineous chips such as Steel, Al., Copper, Zinc, Plastics, etc.
Blade Material : HSS (M2 grade)
Pack Qty : 10
Wt : 36 gms

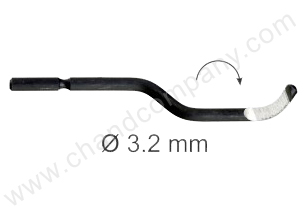

C-60 (12600) Deburring Blade

3.2 mm Ø blade for backside deburring upto 20 mm thickness.
Blade Material : HSS (M2 grade)
Pack Qty : 5
Wt : 38 gms

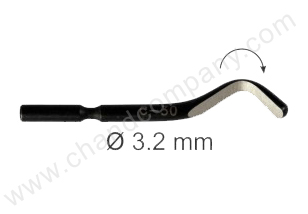

C-30 (12300)

3.2 mm Ø blade for heavy duty application for both sides deburring of sheet metal holes upto 10 mm. thickness.
Blade Material : HSS (M2 grade)
Pack Qty : 10
Wt : 36 gms
C-100 (19100)

3.2 mm Ø Blade for heavy duty deburring application on Steel, Al., Copper, Zinc, Plastics, etc.
Universal Blade in Cobalt grade HSS.
Pack Qty : 10
Wt : 36 gms
