Buttress Thread Gages

BUTTRESS THREADS are used in the construction of artillery with the screw type breech block / gun barrels OR vices & screw jack. As Buttress Threads can withstand the axial load placed on it OR high force only in one direction, these are suitable for above applications.

Specification:

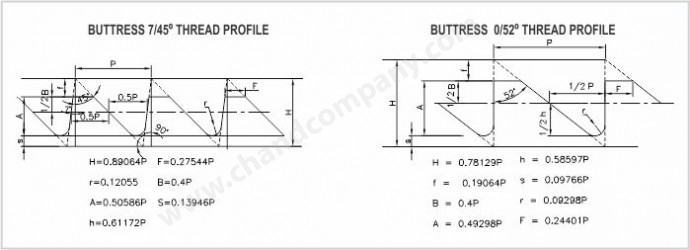

American Specifications: ANSI/ ASME B1.9- 1973 for 7⁰/45⁰thread Profile.
B.S Specifications: B.S 1657 - 1950 used for 7⁰/45⁰and 0/52⁰thread profile.

Manufacturing Range:
Thread Plugs , Thread Rings, Check Plugs & Wear Check Plugs of Diameter from 1/2" to 14" and TPI from 20 to 2.
