HOME > Toolfast > Clamping Device > STOP FOR PINCH CLAMPS

Stop or stopper blocks in different sizes as shown in table below are available to suit all above models of low height pinch clamps (PC Series) and Heavy Duty Pinch Clamps (HDPC Series). These stops are to be mounted on the opposite side of workpiece as shown in drawing above. All faces are ground for precise stopping of workpiece. Available separately in all below sizes.

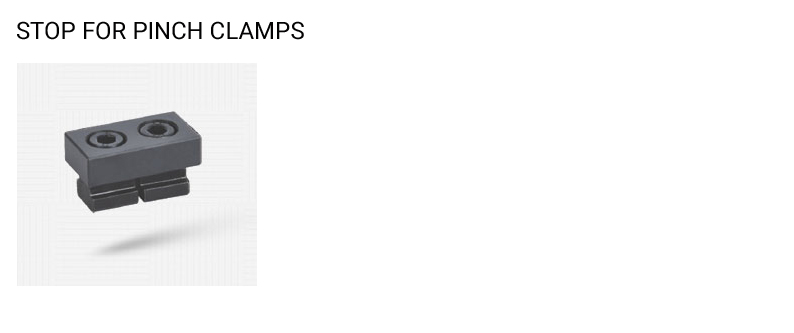

STOP FOR PINCH CLAMPS

Model	SUITABLE FOR PINCH CLAMP MODEL	SUITABLE FOR T-SLOT SIZE T	TOTAL LENGTH a	BREADTH B	HEIGHT C	N. W. Kgs.
ST-PC-1A	PC-1(a)	12	55	30	15	0.25
ST-PC-1B	PC-1(b)	14	55	30	15	0.27
ST-PC-2	PC-2	16	66	38	18	0.51
ST-PC-3	PC-3	18	66	38	18	0.55
ST-PC-4A	PC-4(a)	20	95	48	24	0.91
ST-PC-4B	PC-4(b)	22	95	48	24	1.26
ST-PC-5A	PC-5(a)	24	95	48	24	1.28
ST-PC-5B	PC-5(b)	28	95	48	24	1.50
ST-HDPC-1A	HDPC-1(a)	18	95	62	38	1.85
ST-HDPC-1B	HDPC-1(b)	20	95	62	38	1.86
ST-HDPC-2A	HDPC-2(a)	22	95	62	38	1.87
ST-HDPC-2B	HDPC-2(b)	24	95	62	38	2.18
ST-HDPC-3	HDPC-3	28	95	62	38	2.44
