HOME > Toolfast > Clamping Device > STOP FOR PINCH CLAMPS

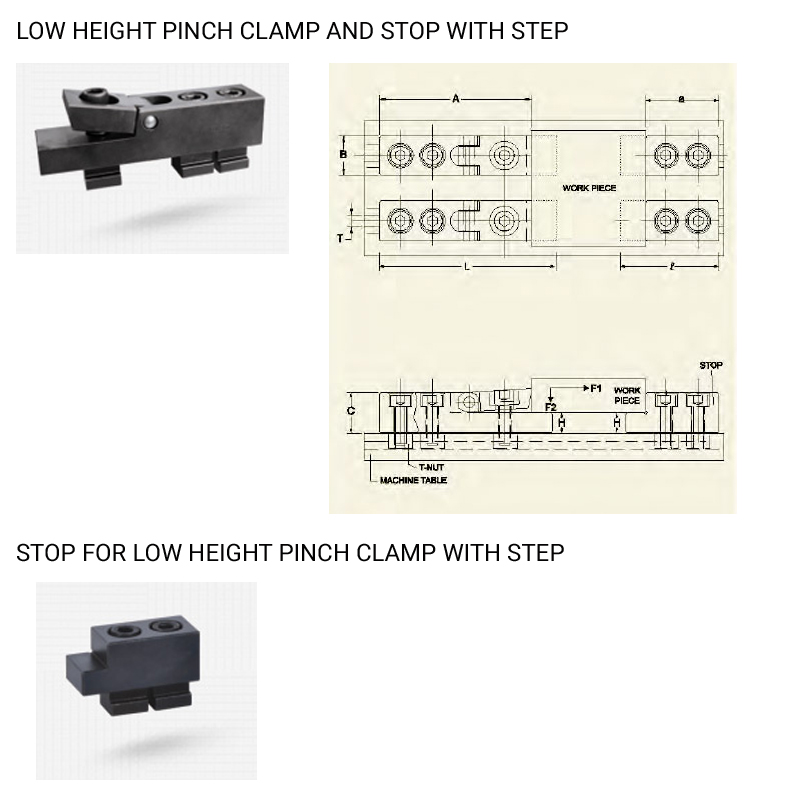

LOW HEIGHT PINCH CLAMP AND STOP WITH STEP

STOP FOR LOW HEIGHT PINCH CLAMP WITH STEP

This is a new version of low height pinch clamp (PC Series) having step to support the workpiece above the machine table for through milling and drilling. Each PCS series clamp comes with a suitable size step (ST-PCS Series) as standard.

MODEL*	SUITABLE FOR PCS MODEL	SUITABLE FOR T-SLOT SIZE T	LENGTH a	OVERALL LENGTH l	BREADTH B	HEIGHT C	HEIGHT H ± 0.01	N. W. Kgs.
ST-PCS-1A	PCS-1A	12	55	70	30	30	14	0.49
ST-PCS-1B	PCS-1B	14	55	70	30	30	14	0.53
ST-PCS-2	PCS-2	16	66	86	38	38	19	0.96
ST-PCS-3	PCS-3	18	66	86	38	38	19	1.02
