HOME > Magnetic Vee Block > PARALLELS & VEE TRANSFER BLOCKS

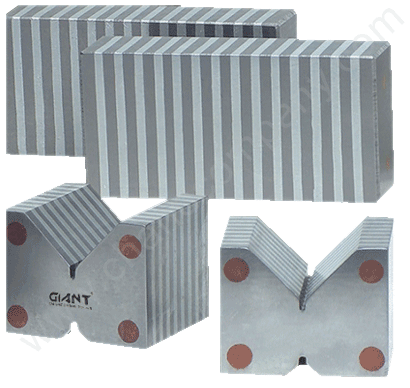

PARALLELS & VEE TRANSFER BLOCKS

Used as an accessory for magnetic chuck to clamp thin & odd shape jobs.

Simplest method of extending the magnetic flux of magnetic chuck with parellel poles to support the job.

Maximum flux transformation when placed parellel to pole lines.

90° V provided for round job.

Perfectly ground within 5 microns & supplied in matched pair.

Sr.	Code	Size in	Type	Unit
No	No	mm
1	TB/CB-01	100 x 50 x 25	Flat	Match pair
2	TB/CB-02	48 x 58 x 46	Vee Type	Match pair
3	TB/CB-03	110 x 58 x 46	Vee Type	Single
4	TB/CB-04	150 x 75 x 25	Flat	Match pair
5	TB/CB-05	300 x 75 x 25	Flat	Match pair
6	TB/CB-06	150 x 75 x 50	Vee Type	Match pair
7	TB/CB-07	300 x 75 x 25	Flat	Match pair
