HOME > Magnetic Vee Block >STEEL VEE BLOCK & CLAMP HARDENED "TOOL ROOM"

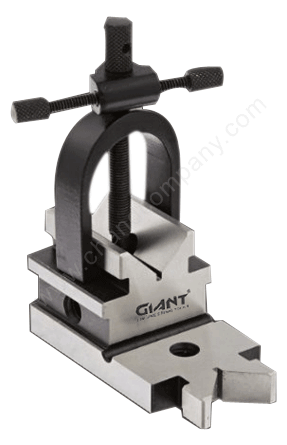

STEEL VEE BLOCK & CLAMP HARDENED "TOOL ROOM"

'V' Blocks are hardened & ground to 55-60 HRC

Very useful Vee Blocks to be used on Base. on Ends or Flaf or Either Side.

To hold Shoulered Studs. ROUND Pins etc., there is a Right Angle Groove at Stepped End.

It has one M 10 Tapped Hole in the Base on each side to make it Attachable to an Angle plate.

Attached Clamp is Provided with Adjustable Screw for better results.

Hardened and Ground to all the Sides.

Both Sides are Griund Parallel and the Groove is Ground Cental and Parallel to the Sides and the base.

Sr.	Code	Size "	Size "	Size "	Size mm	Clamping	Clamping
No	No	L	W	H	L x W x H	Capacity	Capacity
1	TR 90	3.19/32	1.7/8	1.7/8	90 x 48 x 48	1.5/16	33
