HOME > Magnetic Vee Block > STEEL VEE BLOCK & CLAMP "HARDENED "LARGER CAPACITY"

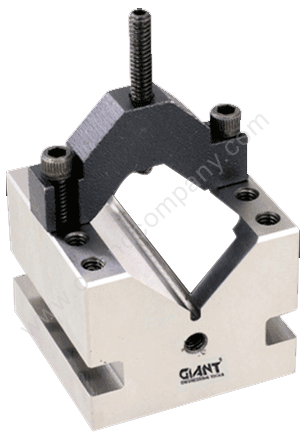

STEEL VEE BLOCK & CLAMP "HARDENED "LARGER CAPACITY"
V' Blocks are hardened & ground to 55-60 HRC
This 'V' Block is having a very large  a very large capacity which     is ideal for toolroom production and inspection jobs.
Made of hardened steel, they are precision ground flat, square     and parellel to within, 0002" to within .0002" over 1"
It can be on its sides as well as on the ends
The Clamp does not interfere with the work when the block is     used sideways.
The style of the Clamp is such that it can be reversed to provide     true tangential contact on cylidrical work.
Tapped holes on the end of the 'V' are useful for  mounting the     'V' blocks perpendicular to the face plates
They are also available with matched pairs, with 2 clamps.
Sr.
Code
Size "
Size "
Size "
Size mm
Clamping
Clamping
No
No
L
W
H
L  x  W  x  H
Capacity (")
Capacity (mm)
1
LC 63
2.1/2
2.1/2
2
63 x 63 x 50
1.5/8
41
2
LC 100
4
4
3
100 x 75 x 75
2.1/4
57
