HARDTEST20

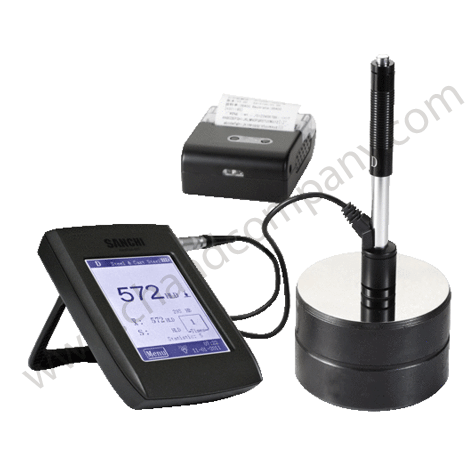

HardTest-20T is a small, light and portable tester and most suitable for testing of heavy, big or outdoor metal parts. It can measure in any direction and also easy to be used and accurate on curved test surfaces. Especially, it canautomatically compensate effect of weight which according to the test direction.It uses wireless IR to communicate with printer, operates with touch screen and test data could be linked into PC. Conforms to the Standard ASTM A956 & DIN 50156

Specifications
HL display range : 170~960HLD
Repeatability : 6HLD
Testing direction : All direction
Optional Impact Device : D, DC, DL, D+15, C, G ( Automatic identification )
Display : 3.9" 240*320 ( touch screen ), LCD display with back light
Power : 3.6V ( rechargeable Ni - MH battery )
Charger : DC5V / 1 A
Printer : Wireless Mini - Printer ( Cable no needed )
Communication : USB to PC for transfer data
Operating environment : Temperature : -20oc ~ +50oc; Humidity : 20% ~ 85 %
Storage environment : Temperature : -30oc ~ +70oc; Humidity : 5% ~ 95 %
Dimensions : 130 mm *86mm*28mm
Weight : 300g ( include D type impact device )
Accessories : Display Unit, Impact Device D, Test Block, Mini-printer, Charger, : Little Support Ring, Cleaning Brush, USB Cable, PC Software CD.
Options : Impact Device DC; DL; D+15; C; G
