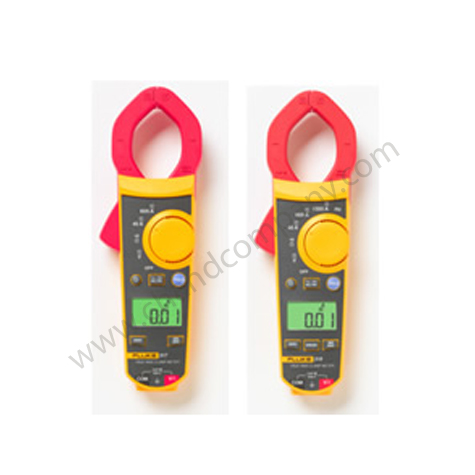

Fluke 317-319 Clamp Meter
The Fluke 317 and 319 are designed with ergonomic concepts, shaped to fit your hand and to access tight spots easily. These small and rugged clamp meters are ideally suited for current measurements up to 1000 A (319) in tight cable compartments. The Fluke 317and 319 also offer AC/DC current measurements and have a higher resolution for loads below 40 A. In addition to a compact package with a strong feature set, the Fluke 319 also equips with In-rush current and Frequency functions for testing motors, lighting, etc.

SR.	Fluke CODE
1	317
2	319

General Specifications

Digital Display

6000 count resolution

Low Battery Indication

Displays a signal when the batteries are below their required voltage

Power Source

Three AAA IEC LR03 batteries

Clamp Opening Size

1.45 in (37 mm)

Jaw Diameter

1.45 in (37 mm)

Dimensions (L x W x H)

6.39 in x 2.29 in x 1.20 in

(162.4 mm x 58.25 mm x 30.5 mm)

Weight

approximately 13.5 oz (384 g) (batteries included)

Auto Range

Available in Ohms

Safety

EN/IEC 61010-1 and IEC 61010-2-032

Measurement Category: 600V CAT III

317 Electrical Specifications

Current AC

Range	40.00 A, 600.0 A
Resolution	0.01 A, 0.1 A
Accuracy	1.6% ± 6 digit (50-60 Hz) {40 A}
	2.5% ± 8 digit (60-500 Hz) {40 A}
	1.5% ± 5 digit (50-60 Hz) {600 A}
	2.5% ± 5 digit (60-500 Hz) {600 A}
Crest Factor add 2% into spec for CF > 2	3.0 Max @ 500 A, 2.5 Max @ 600 A
AC response	rms

Current DC

Range	40.00 A, 600.0 A
Resolution	0.01 A, 0.1 A
Accuracy	1.6% ± 6 digit (40 A)
	1.5% ± 5 digit (600 A)

Voltage AC

Range	600.0 V
Resolution	0.1 V
Accuracy	1.5% ± 5 digit (20-500Hz)
AC response	rms

Voltage DC

Range	600.0 V
Resolution	0.1 V
Accuracy	1% ± 4 digit

Resistance

Range	400.0 Ω, 4000 Ω
Resolution	0.1 Ω, 1 Ω
Accuracy	1% ± 5 digit

Continuity

≤ 30 Ω

Inrush

Integration time

N/A

Frequency

Range	N/A
Accuracy	N/A
Trigger Level	N/A

319 Electrical Specifications

Current AC

Range	40.00 A, 600.0 A, 1000 A
Resolution	0.01 A, 0.1 A, 1 A
Accuracy	1.6% ± 6 digit (50-60 Hz) {40 A}
	2.5% ± 8 digit (60-500 Hz) {40 A}
	1.5% ± 5 digit (50-60 Hz) {600/1000 A}
	2.5% ± 5 digit (60-500 Hz) {600/1000 A}
Crest Factor add 2% into spec for CF > 2	3.0 Max @ 500 A, 2.5 Max @ 600 A, 1.4 Max @ 1000 A
AC response	rms

Current DC

Range	40.00 A, 600.0 A, 1000 A
Resolution	0.01 A, 0.1 A, 1 A
Accuracy	1.6% ± 6 digit (40 A)
	1.5% ± 5 digit (600/1000 A)

Voltage AC

Range	600.0 V
Resolution	0.1 V
Accuracy	1.5% ± 5 digit (20-500Hz)
AC response	rms

Voltage DC

Range	600.0 V
Resolution	0.1 V
Accuracy	1% ± 4 digit

Resistance

Range	400.0 Ω
	4000 Ω
Resolution	0.1 Ω
	1 Ω
Accuracy	1% ± 5 digit

Continuity

≤ 30 Ω

Inrush

Integration time

100 ms

Frequency

Range	5.0 - 500.0 Hz
Accuracy	0.5% ± 5 digit
Trigger Level	10 - 100 Hz ≥ 5 A, 5 - 10 Hz, 100 - 500 Hz ≥ 10 A

The accuracy specifications aply at 73 °F ± 41 °F (23 °C ± 5 °C)

Below 64 °F and above 82 °F (18 °C and above 28 °C) accuracy degrades at (0.1) times specification per °C.

True rms for ac V and ac A accuracy is specified from 5% to 100% of range.

Environmental Specifications

Operating Temperature

14°F to 122°F (-10 °C to 50 °C)

Storage Temperature

-40 °F to 140 °F (-40 °C to 60 °C)

Operating Humidity

Non condensing (< 50 °F) (< 10 °C)

90 % RH (50 °F to 86 °F) (10 °C to 30 °C)

75 % RH (86 °F to 104 °F) (30 °C to 40 °C)

45 % RH (104 °F to 122 °F) (40 °C to 50 °C)

(Without Condensation)

Operating Altitude

1 mile (2000 meters) above mean sea level

Storage Altitude

7 miles (12,000 meters) above mean sea level

IP Rating

IP40

Vibration Requirements

Random MIL-PRF-28800F Class 2, 5-500 Hz, 30 minutes per axis

Drop Test Requirements

3 ft (1 m) drop test, six sides, oak floor

EMI, RFI, EMC

Instrument unspecified for use in EMC field ≥ 0.1 V/m

Temperature Coefficients

0.1x (specified accuracy)/ °C

(<64 °F or > 82° F)

(<18 °C or > 28 °C)
