HOME > fluke > Accessoriest > FLUKE - CODE 419D

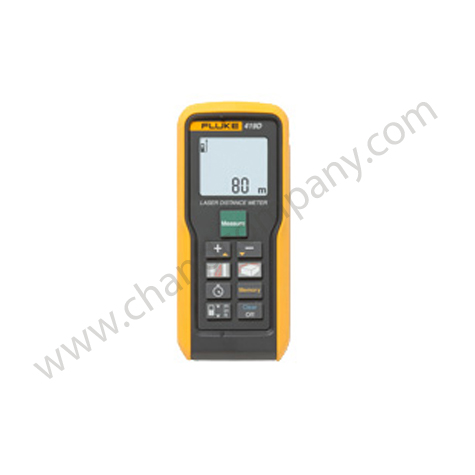

Fluke 419D Laser Distance Meter
The Fluke 419D professional-grade laser distance meter extends your reach to 80 meters (260 feet) with even greater accuracy. It saves you time and reduces errors with enhanced features like storage for 20 complete displays and a tripod mode for stable, long-distance measurements.

SR.	Fluke CODE
1	419D

	414D	419D	424D
Distance Measurement
Typical Measuring Tolerance[1]	± 2.0 mm [3]	± 1.0 mm [3]
Maximum Measuring Tolerance[2]	± 3.0 mm [3]	± 2.0 mm [3]
Range at Leica target plate GZM26	50 m / 165 ft	80 m / 260 ft	100 m / 330 ft
Typical Range[1]	40 m / 130 ft	80 m / 260 ft	80 m / 260 ft
Range at unfavorable condition[4]	35 m / 115 ft	60 m / 195 ft	60 m / 195 ft
Smallest unit displayed	1 mm / 1/16 in	6 /30 / 60 mm (10 / 50 / 100 m)
∅ laser point at distances	6 /30 / 60 mm (10 / 50 / 100 m)	6 /30 / 60 mm (10 / 50 / 100 m)
Tilt measurement
Measuring tolerance to laser beam[5]	No	No	± 0.2°
Measuring tolerance to housing[5]	No	No	± 0.2°
Range	No	No	360°
General
Laser class	2
Laser type	635 nm, <1 mW
Protection class	IP40	IP54
Automatic laser off	After 90 seconds
Automatic power off	after 180 seconds
Battery life (2 x AAA) 1.5 V NEDA 24A/IEC LR03	Up to 3,000 measurements	Up to 5,000 measurements
Size (H X W X L)	116mm Length 53mm Width 33mm Depth	127mm Length 56mm Width 33mm Depth	127mm Length 56mm Width 33mm Depth
Weight (with batteries)	113 g	153 g	158 g
Temperature range: Storage Operation	-25 °C to +70°C (-13 °F to +158 °F) 0 °C to +40 °C (32 °F to +104 °F)	-25 °C to +70°C (-13 °F to +158 °F) -10 °C to +50 °C (14 °F to +122 °F)
Calibration cycle	Not applicable	Not applicable	Tilt and compass
Maximum altitude	3000 m	3000 m	3000 m
Maximum relative humidity	85% at 20 °F to 120°F (-7 °C to 50 °C)	85% at 20 °F to 120°F (-7 °C to 50 °C)	85% at 20 °F to 120°F (-7 °C to 50 °C)
Safety	IEC Standard No. 61010-1:2001 EN60825-1:2007 (Class II)
EMC	EN 55022:2010 EN 61000-4-3:2010 EN 61000-4-8:2010
[1] Applies for 100 % target reflectivity (white painted wall), low background illumination, 25 °C. [2] Applies for 10 to 500 % target reflectivity, high background illumination, -10 °C to +50 °C. [3] Tolerances apply from 0.05 m to 10 m with a confidence level of 95 %. The maximum tolerance may deteriorate to 0.1 mm/m between 10 m to 30 m and to 0.15 mm/m for distances above 30 m. [4] Applies for 100 % target reflectivity, background illumination between 10'000 lux and 30'000 lux. [5] After user calibration. Additional angle related deviation of ±0.01° per degree up to ±45° in each quadrant. Applies at room temperature. For the whole operating temperature range the maximum deviation increases by ±0.1°.
