HOME > fluke > Accessories > FLUKE - CODE 1507/1503

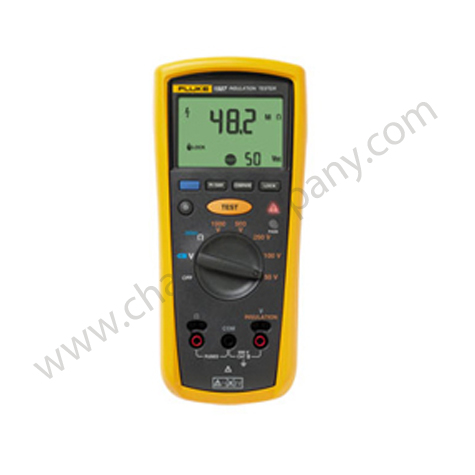

Fluke 1507/1503 Insulation Resistance Testers
The Fluke 1507 and 1503 Insulation Testers are compact, rugged, reliable, and easy to use. With their multiple test voltages, they are ideal for many troubleshooting, commissioning, and preventative maintenance applications.
Additional features, like the remote probe on these tools save both time and money when performing tests.

SR.	Fluke CODE
1	1503
2	1507

AC/DC Voltage Measurement

Accuracy

Range	600.0 V
Resolution	0.1 V
50 Hz to 400 Hz ± (% of Rdg + Digits)	± (2 % + 3)

Input impedance

3 MΩ (nominal), < 100 pF

Common mode rejection ratio (1 kΩ unbalanced):

> 60 dB at dc, 50 or 60 Hz

Overload Protection

600 V rms or dc

Earth bond resistance measurement

Range/Resolution

20.00 Ω	0.01 Ω
200.0 Ω	0.1 Ω
2000 Ω	1.0 Ω
20.00 kΩ	0.01 kΩ

Accuracy

± (1.5 % + 3)

Overload Protection

2 V rms or dc

Open Circuit Test Voltage

> 4.0 V, < 8 V

Short circuit current

> 200.0 mA

Insulation specifications

Measurement Range

1507:	0.01 MΩ to 10 GΩ
1503:	0.01 MΩ to 2000 MΩ

Test voltage

1507:	50 V, 100 V, 250 V, 500 V, 1000 V
1503:	500 V, 1000V

Test Voltage Accuracy

+ 20 %, - 0 %

Short circuit current

1 mA nominal

Auto Discharge

Discharge time < 0.5 second for C = 1 µF or less

Live circuit indicator

Inhibit test if terminal voltage > 30 V prior to initialization of test

Maximum Capacitive Load

Operable with up to 1 µF load

Measure Accuracy:

50 V:	±(3 % + 5)
100 V:	±(3 % + 5)
250 V:	±(1.5 % + 5)
500 V:	±(1.5 % + 5)
1000 V:	±(1.5 % + 5) to 2000 MΩ, ±(10 % + 3) above 2000 MΩ

General Specifications

Maximum voltage applied to any terminal:

600 V ac rms or dc

Storage Temperature

-40 °C to 60 °C (-40 °F to 140 °F)

Operating Temperature

-20 °C to 55 °C (-4 °F to 131 °F)

Temperature Coefficient

0.05 x (specified accuracy) per °C for temperatures < 18 °C or > 28 °C (< 64 °F or > 82 °F)

Relative Humidity

0 % to 95 % @ 10 °C to 30 °C (50 °F to 86 °F)

0 % to 75 % @ 30 °C to 40 °C (86 °F to 104 °F)

0 % to 40 % @ 40 °C to 55 °C (104 °F to 131 °F)

Vibration

Random, 2 g, 5-500 Hz per MIL-PRF-28800F, Class 2 instrument

Shock

1 meter drop per IEC 61010-1 2nd Edition (1 meter drop test, six sides, oak floor)

Electromagnetic compatibility:

In an RF field of 3 V/M, accuracy = specified accuracy (EN 61326-1:1997)

Safety

Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 NO. 61010-1-04, and IEC/EN 61010-1 2nd Edition for measurement category IV 600 V (CAT IV)

Certifications:

CSA per standard CSA/CAN C22.2 No. 61010.1-04; TUV per standard IEC/EN 61010-1 2nd Edition

Batteries

Four AA batteries (NEDA 15A or IEC LR6)

Battery Life

Insulation test use:	Tester can perform at least 1000 insulation tests with fresh alkaline batteries at room temperature. These are standard tests of 1000 V into 1 MΩ with a duty cycle of 5 seconds on and 25 seconds off.
Resistance measurements:	Tester can perform at least 2500 earth bond resistance measurements with fresh alkaline batteries at room temperature. These are standard tests of 1 Ω with a duty cycle of 5 seconds on and 25 seconds off.

Size

5.0 cm H x 10.0 cm W x 20.3 cm L (1.97 in H x 3.94 in W x 8.00 in L)

Weight

550 g (1.2 lb)

IP Rating

IP40

Altitude

Operating:	2000 m CAT IV 600 V, 3000 m CAT III 600 V
Non-operating (storage):	12,000 m

Over-range capability:

110 % of range

Included accessories:

TL224 Test Leads, TP74 Test Probes, clips PN 1958654 (red) and PN 1958646 (black), holster and remote probe
