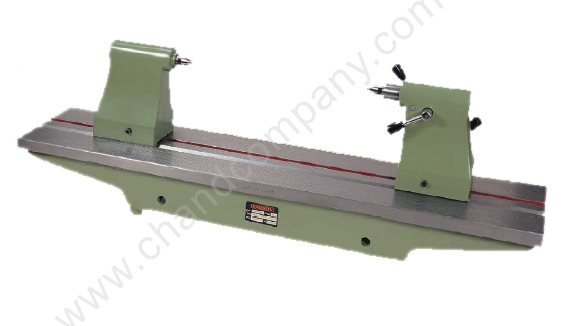

Bench Centre

Made generally as per IS: 5980-1978. Made from good quality of Castings with high Density Alloyed Cast Iron castings conforming to Grade FG-220 of IS: 210. Stress Relieved Hand Scraped Surface. The centres are having such design that on placing at any centre distance, they remain aligned.

All the centres are provided with carbide Tipped dead centres.

Admit Between Centre in mm	Centre Height in mm	Co – axiality Of Centres in µm
300	125	10
500	125	15
500	160	15
500	200	20
750	160	20
750	200	30
1000	160	20
1000	200	30
1200	200	30
1200	250	35
1500	250	40

Centre Distance	Centre Height
300	125
500	125
500	160
500	200
750	160
750	200
1000	160
1000	200
1200	200
1200	250
1500	250
