HOME > bagson > straightness > Cast Iron I-Section St-Edge

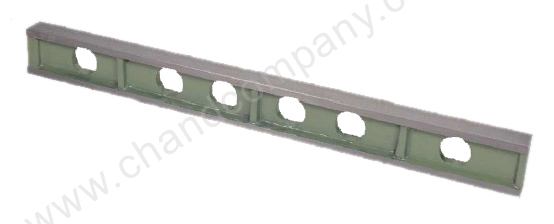

Cast Iron I-Section St-Edge

Made generally as per IS: 5268-1991. Made from good quality closed grained with high Density Alloyed Cast Iron Castings Conforming to Grade FG 220 of IS: 210 Stress Relieved Hand Scraped Surfaces.

Size in mm (L X B X H)	Provided Accuracy Flatness & Parallelism In µm	Flatness & Parallelism Accuracy As Per IS In µm (Grade 0)	Flatness & Parallelism Accuracy As Per IS In µm (Grade 1)
300 X 50 X 75	3	2	3
500 X 50 X 75	4	3	5
750 X 50 X 80	4	3	6
1000 X 50 X 100	7	5	10
1500 X 50 X 100	8	6	12
2000 X 50 X 150	12	10	20
2500 X 50 X 190	14	-	-
3000 X 60 X 235	18	15	30
3500 X 60 X 250	20	-	-
4000 X 75 X 450	25	20	40
5000 X 75 X 450	35	25	50

Size in mm

300 x 50 x 75

500 x 50 x 75

750 x 50 x 80

1000 x 50 x 100

1500 x 50 x 150

2000 x 50 x 150

2500 x 50 x 190

3000 x 60 x 235

3500 x 60 x 250

4000 x 75 x 350

5000 x 75 x 350

6000 x 75 x 350
