HOME > bagson > straightness > Cast Iron Camel Back St-Edge

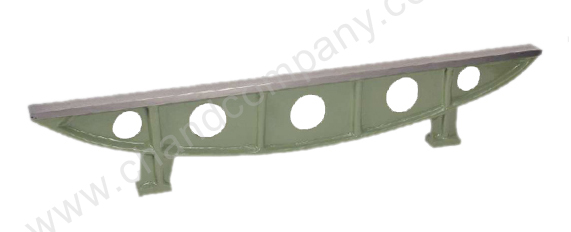

Cast Iron Camel Back St-Edge

Made Generally as per IS: 5268-1991. Made from good quality close grained with high Density Alloyed Cast Iron Castings Conforming to Grade FG-220 of IS:210. Stress Relieved Hand Scraped Surface.

Length in mm	Min. Width in mm	Provided Accuracy in µm	Accuracy as per IS in µm (Grade 0)	Accuracy as per IS in µm (Grade 1)
300	30	3	2	3
500	35	4	3	5
800	40	5	3	6
1000	45	7	5	10
1600	55	9	6	12
2000	65	12	10	20
3000	90	18	15	30

Size in mm

300 x 30

500 x 35

800 x 40

1000 x 45

1200 x 45

1600 x 55

2000 x 65

3000 x 90
