HOME > Arete > Wood Working Vices > 1137

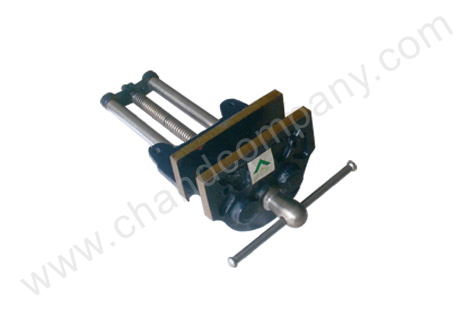

ARETE Code 1137
Wood Working Vice
( Size : 6", 7", 8", 9" ) Features :
  • Accurately machined housing assure smooth sliding movement.
  • Vice jaws equipped with a "TOE - IN" feature. When fully closed, the jaws meet only at the top to provide even clamping on the whole depth of the work piece.
  • Square body seating provides easy fitment under the bench top so that jaws are flush with the bench top.
  • Body and sliding jaw have provision for attaching wooden liners to protect the vice, work piece and working tools.
Construction :
  • These are manufactured from close-grained grey cast iron for long trouble free service.
  • Accurately fitted solid steel guide rods reduce wear and tear giving the vices a smooth and true parallel action, free of side or cross deflection.
  • The Steel main screw has buttress threads for smooth, accurate and responsive adjustment.
Finish : Enameled oxford blue.
Specifications
Size in inches Width of Jaws (in mm) Opening of Jaws (in mm) Code Weight (app. in Kgs) Code
6 150 180 4.6
7 175 230 8.1
8 200 260 10.5
9 225 330 15.3
Wood Working Vice 1137
Size in mm STD. PKG.
150 6
175 4
200 3
225 3
