HOME > Arete > machineVice > 1168

ARETE Code 1168

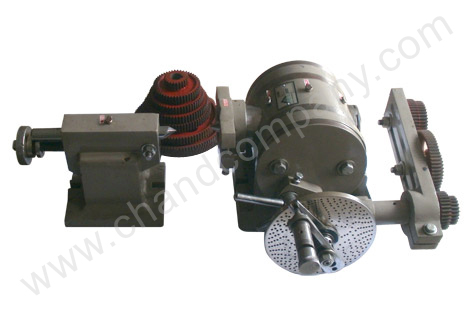

Universal Dividing Head
( Size : 127 mm, 180 mm ) Features :
  • Dividing head can divide in any angle by the direct, in-direct, or differend methods. The ratio between the warm and the warm gear is 1:40.
Construction :
  • The body is made of close grained cast iron precisely machined to close accuracies.
  • The swivel clamping pad is made from aluminium which helps eliminate any damage to the measuring device.
Finish : Powder Coated
Specifications
Center Height Worm Gear Ratio Spindle Bore Size ( in mm ) Spindle Taper Degree Overall Height Vertical Position in mm Length of Base in mm Width of Base in mm Gear Set D.P. Set of Gears Number of Indexing Weight
( in Kgs. )
127 mm 1.40 20 1.5 175 180 115 14 24, 24, 28, 32, 36, 40, 44, 48, 56, 64, 72, 86, 100 Side A 11, 16, 19, 25, 37, 41, 49
Side B 13, 17, 18, 27, 33, 43, 51		 45 Kgs
180 mm 1.40 38 1.5 260 264 180 12 24, 24, 28, 32, 36, 40, 44, 48, 56, 64, 72, 86, 100 Side A 9, 13, 17, 19, 21, 23, 27, 31, 33, 39, 47, 51
Side B 7, 11, 15, 16, 18, 20, 25, 29, 37, 41, 49, 53		 94 Kgs.
Universal Dividing Head 1168
Size in mm
115
127
140
165
190
