ARETE Code 1150

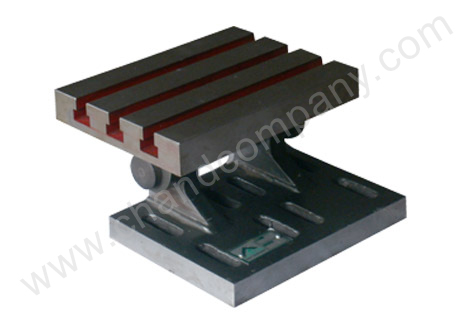

Swivel Angle Table
( Size : 5"x6", 6"x8", 8"x10", 10"x12" 12"x15" ) Features :

These Tilting Angle Tables are available in a range of sizes. They are designed primarily of simple, quick angle adjustment and angle setting on Drilling and Milling Machines.

Finish : Wrincle Black

Specifications
Size in inches	Size of table ( in mm )	Height Overall ( in mm )	T-Slot Size ( in mm )	Weight ( app. in Kgs. )
5 x 6	125 x 150	110	13	6.50
6 x 8	150 x 200	130	13	11.50
8 x 10	200 x 250	165	13	23
10 x 12	250 x 300	210	16	42
12 x 15	300 x 375	230	16	70

Swivel Angle Table 1150

Size in mm	STD. Pkg.
125x150	2
150x200	2
200x250	1
250x300	1
300x375	1
