HOME > Arete > machineVice > 1148

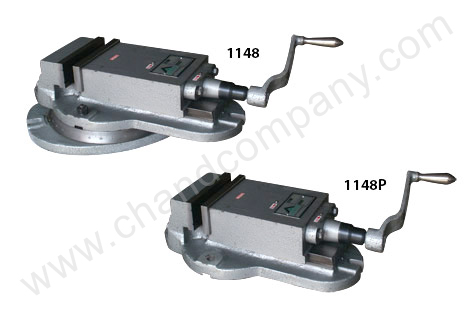

ARETE Code 1148 & 1148P, SG1148 & SG1148P
Preci Milling Machine Vice
1148   - Swivel Model
1148P - Plain Model
( Size : 4", 6", 8" ) Features :
  • Manufactured to consistent accuracy to give prolonged reliable service.
  • Totally enclosed design prevents the ingress of foreign matter and damage to the screw and nut.
  • Swivel base graduated fully 360°.
  • Tenon Slots in slide and swivel base.
  • Available as plain and swivel vice.
  • (Dovetailed  Slide) Vee Sideways adjustable for giving prolonged working life.
Construction :
  • High tensile Stress Relieved quality casting, precision ground hardened & tempered steel jaws plates.
  • ACME thread interchangeable screw, Steel  Nut contained in totally enclosed sliding jaw.
  • Complete with all steel handle.
Finish : Hammer Tone Ash grey  Code SG1148 - SG1148P : SG Ductile Iron Body Finish : Hammer tone metallic blue.
Specifications
Size in Inches Width of Jaws (in mm) Depth of Jaws (in mm) Opening of Jaws (in mm) Length Overall (in mm) Height Overall (in mm) (Plain Vice) Height Overall (in mm) (Swivel Vice) Width Overall (in mm) (Plain Vice) Width Overall (in mm) (Swivel Vice) Tenon Slot Size (in mm ) Weight (app. in Kgs.) Code 1148 Weight (app. in Kgs.) Code 1148P
4 100 40 100 371 85 120 155 170 16 18 12
6 150 50 150 480 110 145 245 280 20 46 34
8 200 60 200 615 135 190 300 325 20 86 65
Preci Milling Machine Vice (Swivel Model) 1148
Size in mm STD. Pkg.
100 2
150 1
200 1








Preci Milling Machine Vice (Swivel Model) SG 1148
Size in mm STD. Pkg.
100 2
150 1
200 1










Preci Milling Machine Vice (Iron Body) 1148P
Size in mm STD. Pkg.
100 2
150 1
200 1








Preci Milling Machine Vice (Iron Body)SG 1148P
Size in mm STD. Pkg.
100 2
150 1
200 1
