ARETE Code 1135
Tilt Lock Machine Vice
Unbreakable Ductile Iron Cast Body
( Size : 4", 5", 6", 8" ) Features :

Tilt Lock Machine Vice design is beamlike with two vertical and horizontal rails connected to the base.
You can hold piece parts in the most immobile state possible.
Flame Hardened Bed.
All parts interchangeable and available as spares.

Three Basics in precision Clamping

That the movable jaw does not lift off the bed.
That the body is rigid, and that a minimum amount of bending stresses are created in the clamping area.
That deflection of the stationary jaw is minimized.

Totally enclosed toughened Screw.
Accuracy in Parallelism & squareness within 0.02 mm.

Construction :

Unbreakable ductile iron cast body. Die Steel (EN-31) hardened & ground jaws.
In addition to the rigid design charactereristics, a large heavy nut is drawn up againest the machined ways on the inside vice as the movable jaw is drawn down. This creates a heavy mass of material under compression and extremely resistant to bending stresses.
4 Jaws Plate positions allowing extra capacity with the jaw plates in the outside position.

Specifications
Size in Inches	Width of Jaws (in mm)	Depth of Jaws (in mm)	Between Jaws position 1 (in mm)	Between Jaws position 2 (in mm)	Between Jaws position 3 (in mm)	Between Jaws position 4 (in mm)	Width Overall (in mm) Code 1135	Width Overall (in mm) Code 1135P	Height Overall (in mm) Code 1135	Height Overall (in mm) Code 1135P	Tenon Slot Size (in mm)	Length Overall (in mm)	Weight (app. in Kgs.) Code 1135	Weight (app. in Kgs) Code 1135P
4	100	37	100	160	230	280	230	190	140	100	16	360	21	15
5	125	40	125	185	270	330	260	221	165	123	20	410	35	25
6	150	48	160	227	315	380	310	248	163	128	20	480	44	34
8	200	60	225	310	420	505	405	309	221	165	20	620	91	63

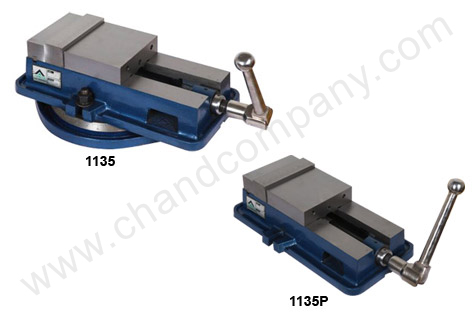

Tilt Lock Machine Vice (Swivel Model) 1135

Size in mm	STD. Pkg.
100	1
125	1
150	1
200	1

Tilt Lock Machine Vice (Iron Body) 1135P

Size in mm	STD. Pkg.
100	1
125	1
150	1
200	1
