HOME > Arete > machineVice > 1123

ARETE Code 1123

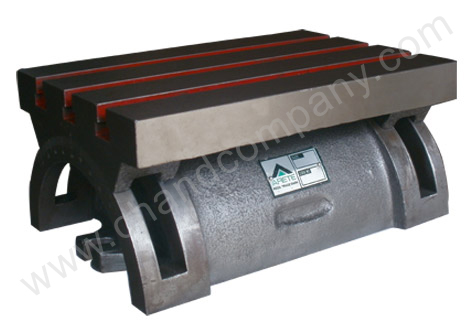

Tilting Table

( Size : 5"x7", 7"x10", 10"x15" ) Features :

Special design for angle setting on various machine tools.
Low profile for larger working space.
The table is set manually to the required Tilt and is locked in the set position by means of two locking clamps held through bolts.
Can be adjusted by 45 degree on both right-hand and left- hand side.
The angle marking are accurate and easy to read.

Application :

Useful accessory for setting work at an angle for milling or other operations.

Construction :

Cast Iron Stress Relieved Tilting Table.

Finish : Hammer tone mid grey.

Specifications
Size in inches	Size of Table (in mm )	Height overall (in mm)	T-Slot Size (in mm)	Calibration Code	Weight (app. in Kgs.)
5 x 7	125 x 175	98	13	0 to 90°	9
7 x 10	175 x 150	138	16	0 to 90°	22
10 x 15	250 x 375	174	16	0 to 90°	45

Tilting Table 1123

Size in mm	STD. Pkg.
125x175	2
175x250	1
250x375	1
