HOME > Arete > machineVice > 1103

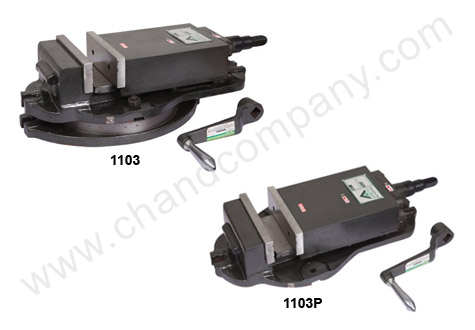

ARETE Code 1103 Milling Machine Vice Swivel Model ( Size : 3", 4", 6", 8", 10", 12") Features :
  • Manufactured to consistent accuracy to give prolonged reliable service.
  • Totally enclosed design prevents the ingress of foreign matter and damage to the screw and nut.
  • Swivel base graduated fully 360°.
  • Spares readily available.
  • Tenon Slots in slide and swivel base.
  • Available as plain and swivel vice.
Construction :
  • High tensile Stress Relieved quality casting, precision ground hardened & tempered steel jaws plates.
  • ACME thread interchangeable screw, steel nut
  • Contained in totally enclosed sliding jaw.
  • Complete with all steel handle.

Code 1103 & 1103P : Finish : Amazon Green
  • Code SG1103 - SG1103P :SG Ductile Iron Body
Finish : Hammer tone metallic blue.
Specifications
  Size in Inches Width of Jaws (in mm) Depth of Jaws (in mm) Opening of Jaws (in mm) Length Overall (in mm) Height Overall (in mm) (Plain Vice) Height Overall (in mm) (Swivel Vice) Width Overall (in mm) (Plain Vice) Width Overall (in mm) (Swivel Vice) Tenon Slot Size (in mm ) Weight (app. in Kgs.) Code 1103 Weight (app. in Kgs.) Code 1103P
1103 3 75 38 75 285 70 100 135 155 13 9.7 6.8
4 100 40 50 320 85 110 155 180 16 16.5 13
6 150 100 150 460 100 140 240 255 20 41 31
1103P 8 200 60 200 570 115 165 190 310 20 74 57
10 250 70 250 725 140 190 350 370 ... 125 96
12 300 75 300 820 145 195 425 445 ... 170 135
Milling Machine Vice Swivel Model 1103
Size in mm STD. Pkg.
75 2
100 2
150 1
200 1
250 1
300 1













Milling Machine Vice Iron Body 1103
Size in mm STD. Pkg.
75 2
100 2
150 1
200 1











ARETE Code 1103P
Size in mm STD. Pkg.
75 2
100 2
150 1
200 1
250 1
300 1













Milling Machine Vice Iron Body 1103
Size in mm STD. Pkg.
75 2
100 2
150 1
200 1
