HOME > Arete > machineVice > SG1101A

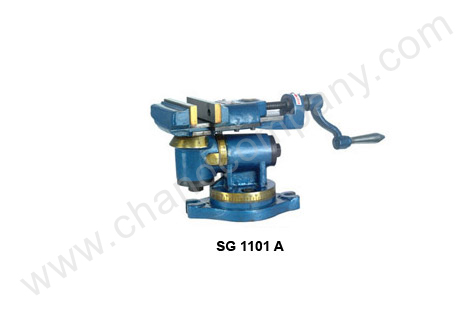

ARETE Code SG1101A Universal Precision Machine Vice ( Size : 4", 6" ) Features :
  • The most versatile of all machine vices with all degrees of freedom, the Universal Vice allows the work piece to be set at any desired angle.
  • The specific advantage of this Vice is its ability to be set perpendicular to the base, thereby allowing right angle machining on the same machine setting.
  • Allows for the job to be set at low heights, particularly suitable for the most complicated grinding applications.
  • Fully graduated 360° swivel base allows complete rotation along the vertical axis. The third angular side with a moving axis allows for any setting in the 3D plane.
  • Sliding jaw runs on accurately ground surfaces fitted with hardened steel keep strips ensuring perfect alignment and rigidity.
  • All swivelling movements have positive locking.
  • "Hold Down" slots allow for secure clamping of the vice on the work table.
Application :
  • Primarily designed for use on Surface, Universal and Tool and cutter Grinding Machines. Its sleek and slender design has endeared it to many engineers who look for precision and versatility.
Construction :
  • S.G.Ductile Iron Frame
  • Jaw plates are hardened steel with accurately ground surface.
  • Use of hi tensile grade 10.8 fasteners provides strength and rigidity to these vices.
  • Supplied complete with steel handle.
Finish : Hammer tone metallic blue.
Size in Inches Width of Jaws (in mm) Depth of Jaws (in mm) Opening of Jaws (in mm) Length Overall (in mm) Code 1101A Height Overall (in mm) Code 1101A Width Overall (in mm) Tenon Slot Size (in mm) Weight (app. in Kgs.) Code 1101A
4 100 25 65 270 170 110 16 10
6 150 40 115 405 225 155 16 25
Universal Precision Machine Vice SG1101A
Size in mm STD. Pkg.
100 2
150 1
