HOME > Arete > machineVice > 1101

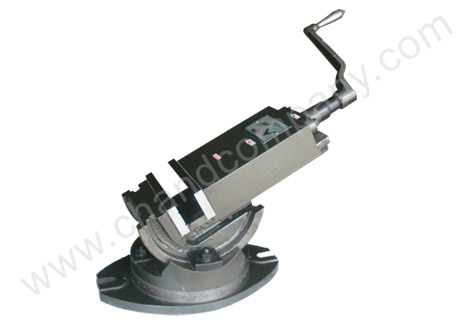

ARETE Code 1101 Tilting & Swiveling Vice
( Size : 4", 6", 8" ) Features :

Manufactured to consistent accuracy to give prolonged reliable service.
Bearing Surface Precision ground. Flatness within 0.0012" (30 microns)
Once locked impossible to shift.
Totally enclosed acme screw with three point location of operating in Manganese Steel Nut.
Tenon Slot machined in back as standard for CNC use.
Swivel base graduated through 360°
Vertical Tilting Capacity 90°

Application :

Suitable for Milling - Grinding - Shaping- Drilling and Jig Boring.

Construction :

These Vices are manufactured from close grained Hi Tensile seasoned Cast Iron.
Jaws : Fully hardened (50±3 HRC) and ground tool steel jaws with parallelism within 0.0012" (30 microns)
Spindle : Precisely cut ACME threads with pitch most suitable for firm gripping and smooth operations.
Nut : Hot stamped manganese steelz nut contained in totally enclosed sliding jaws.
Fasteners : All fasteners used in the vices are grade 10.8 which provide extended strength and rigidity to these vices
Supplied Complete with Steel Handle.

Finish : Amazon Green

Code SG1101 : SG Ductile Iron Body

Finish : Hammer tone metallic blue

Specifications
Size in Inches	Width of Jaws (in mm)	Depth of Jaws (in mm)	Opening of Jaws (in mm)	Length Overall (in mm)	Height Overall (in mm)	Width Overall (in mm)	Tenon Slot Size (in mm)	Weight (app. in Kgs.)
4	100	40	100	345	150	180	16	19
6	150	50	150	510	200	250	20	42
8	200	60	200	620	230	280	20	76

Tilting & Swiveling Vice 1101

Size in mm	STD. Pkg.
100	1
150	1
200	1

Iron Body SG 1101

Size in mm	STD. Pkg.
100	1
150	1
200	1
