HOME > Arete > Drill Vices > 1113

ARETE Code 1113

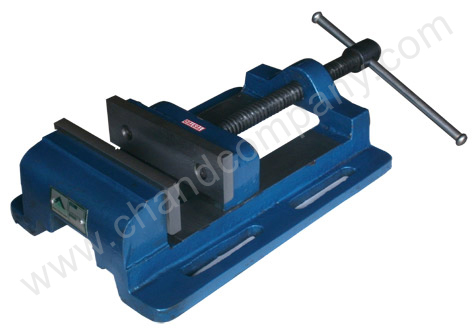

Drill Machine Vice
( S.G Ductile Iron Body )
( Size : 3", 4", 5", 6", 8" ) Features :

Continuous Screw giving powerful grip on work.
No lifting of the sliding jaw.
Moving jaw is plain & fixed is provided with one vertical & one horizontal 90° V-grooves.

Construction :

S.G. Ductile Cast Iron Body

Finish :Hammer tone metallic blue

Size in Inches	Width of Jaws (in mm)	Opening of Jaws (in mm)	Depth of Jaws (in mm)	Height Overall (in mm)	Length Overall (in mm)	Width Overall (in mm)	Weight ( app. in Kgs. )
3	75	100	35	70	265	130	4.5
4	100	130	40	75	310	172	7
5	125	140	50	90	320	190	10
6	150	175	55	95	380	222	15
8	200	225	70	112	495	270	26

Drill Machine Vice 1113

Size in mm	STD. PKG.
75	6
100	4
125	4
150	4
200	2
