HOME > Arete > Drill Vices > 1112

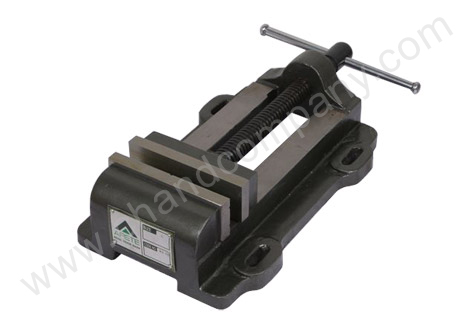

ARETE Code 1112
Drill Vice (Deluxe Model)
( Size : 4", 6" ) Features :

Moving jaw is plain & fixed is provided with one vertical & two horizontal 90° V-grooves. Horizontal and vertical V-groove in the stationary jaw allows holding of round job securely.
The base and slides are precision ground for stability and accurate operation.
Continuous Screw giving powerful grip on work.

Construction :

Body graded Cast Iron dully stress relieved. Lead Screw toughened selected steel. Precision ground hardened & tempered tool steel jaws

Finish : Amazon Green

Specifications
Size in inches	Width of Jaws (in mm )	Opening of Jaws (in mm)	Depth of Jaws (in mm)	Height overall (in mm)	Length overal l (in mm)	Width overall (in mm)	Weight (app. in Kgs.)
4	100	140	40	80	350	205	11
6	150	220	55	110	460	255	26
8	200	280	60	130	585	315	51

Drill Vice 1112

Size in mm	STD. PKG.
100	3
150	2
200	1
