HOME > Arete > Drill Vices > SG1110

ARETE Code SG1110

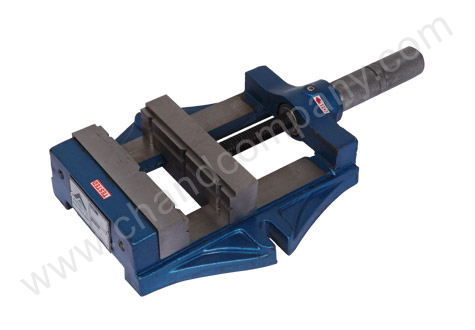

Unigrip Machine Vice
( S.G. Iron Body )
( Size : 3.1/4", 4", 6" ) Features :

Small compact and indispensable Vices with steel jaws. On the face of which are grooved horizontal and vertical notches for holding, round, square, thin & irregular work for drilling & light milling.
Vices are equipped with a convenient unigrip mechanism. Spindle moves inside the hollow hand grip allowing the vice to be used at a location away from table edge. This feature increase the scope of application of the range of vices.

Finish : Hammer tone mid grey.

Specifications
Size in inches	Width of Jaws (in mm )	Depth of Jaws (in mm)	Opening of Jaws (in mm) (Lower Portion)	Opening of Jaws (in mm) (Upper Portion)	Length overall (in mm)	Height overall (in mm)	Width overall (in mm)	Weight (app. in Kgs.)
3.1/4"	80	25	80	85	260	50	145	3
4	100	25	115	120	325	55	180	5
6	125	40	140	160	415	60	240	10

Unigrip Machine Vice SG1110

Size in mm	STD. PKG.
80	6
100	4
125	4
150	3
