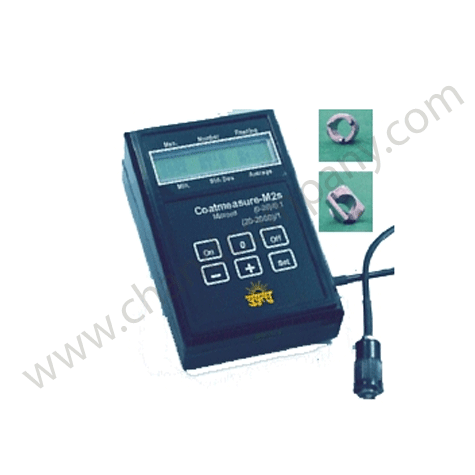

Coating Thickness Gauge

Models M2s, M6s & M12s
For Non-magnetic coatings on magnetic base. Ideal for Coatings on MS.

Model C2s & C4s
For Non-conductive coatings on conductive base. For Anodizing and Coatings on Brass & Aluminium.

Model (M&C)2s
Combined Model of M2s & C2s.

Statistics (Number of readings, average, Std. deviation, max. & min.) are updated with every reading and displayed simultaneously.
It helps to decide how many readings are to be taken. Continue taking readings till you start getting reasonably consistent statistics.

Third party Test Report traceable to international standards.

Interchangeable probe sleeve tip(A) having 3 points for flat & spherical surface.

Interchangeable probe sleeve tip(B) having V block for cylindrical surfaces.

Auto-Off. If instrument remains unused for 2 minutes, it is switched off automatically. It saves battery.

Last calibration retained and Auto-retrieved.

Manipulation of readings not possible.

Models M have Hard-Chrome Plated Probe tips and Models C have Probe tips of Wear Resistant Material.

Spring loaded probe sleeve with tip ensures probe is held perpendicular.

A beep sound is heard when reading is obtained.

Low battery indication - Display shows BAT continuously.

Test Base	- To check satisfactory working.
Testfoils	- For calibration.
Maximum number of readings	- 254.
Working Temperature	- 0 to 50 degree C.
Supply Dry Battery	- 9V (6f22).
Display Digit Height	- 5.6 mm.
Instrument Size	- 127x83x41 mm.
Instrument Weight	- 300 gms.
Probe wire Length	- 1000 mm.
Socket for AC Adaptor.
Wooden Case.

Extra Accessories :

Ac Adaptor.
Handsfree Pouch - held by waist band & neck sling.

On Request, instrument mfd. with :

Carbide/Ceramic Probe Tip (Only With Models M).

Angle probe with Extension Rod of length mm 100/200/300.

Coatmeasure		M2s	C2s	(M&C)2s	M6s	M12s	C4s
Range/Resolution	microns	(0-20)/0.1 (20-2000)/1	(0-20)/0.1 (20-2000)/1		(0-1000)/01 (1000-6000)/10		(0-1000)/01 (1000-4000)/10
	mm					(0-1)/0.001 (1-12)/0.010
Accuracy	microns	1 or 1%	2 or 1.5%	Refer	10 or 1%	10 or 1%	10 or 1%
Probe Size, Dia. x Length.	mm	14 x 30	18 x 44	M2s	17 x 30	30 x 45	18 x 44
Min. Base Thickness	mm	0.3	0.3	&	0.3	0.5	0.3
Min.Area for Flat - a circle of dia.	mm	10	11.5	C2s	11.5	23	11.5
Min. dia. for Cylinder-outside.	mm	6	8		8	10	8
Min. dia. for Cylinder-inside.	mm	15	20		20	40	20
Min. radius for Spherical Surface, Outside.	mm	8	10		10	20	10
Min. radius for Spherical Surface, Inside.	mm	15	20		20	30	20
