HOME > sanchi > MECHANICAL FORCE GAUGE (PUSH & PULL GAUGE) DFG SERIES

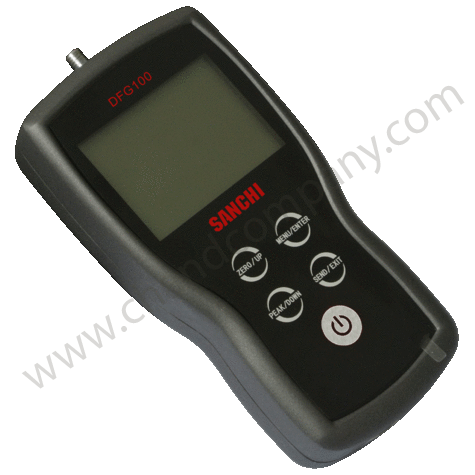

SANCHI Force Gauges are designed to accurately measure tension and compression forces associated with various industrial products

Features :

For Pull & Push Test.
Peak (Max) and Tracking Mode.
1000 Memories.
Overload alarm.
Data Output to PC.
Automatic reversible display.
LCD Display with BackKlight
Built in Rechargeable Battery.
Accuracy : +/-0.2% of Full Scale
Selectable Units : N, Kgf, ibf, ozf, gf
Low & High Limits with judgement.
Protection Mechanism to prevent overload damage.
Ergonomic, durable, heavy-duty metal construction
Mini Wireless Printer (Optional).
Calibration certificate included.

STANDARD DELIVERY

Main Unit	AC/DC adapter	USB cable and software	Push / Pull accessory
1 pc	1 pc	1 pc	6 pcs (flate push tip, V push tip, knife-edge push tip, point push tip pull clamp extension rod)

Model	Capacity	Resoluton	Accuracy
DFG2	2N	0.0005	+/- 2% of the full scale
DFG5	5N	0.0005	+/- 2% of the full scale
DFG10	10N/1Kgf	0.001N/0.0001Kgf	+/- 2% of the full scale
DFG20	20N/2Kgf	0.005N/0.0005Kgf	+/- 2% of the full scale
DFG50	50N/5Kgf	0.005N/0.0005Kgf	+/- 2% of the full scale
DFG100	100N/10Kgf	0.01N/0.001Kgf	+/- 2% of the full scale
DFG200	200N/20Kgf	0.05N/0.005Kgf	+/- 2% of the full scale
DFG500	500N/50Kgf	0.05N/0.005Kgf	+/- 2% of the full scale
DFG1000	1000N/100Kgf	0.1N/0.01Kgf	+/- 2% of the full scale
