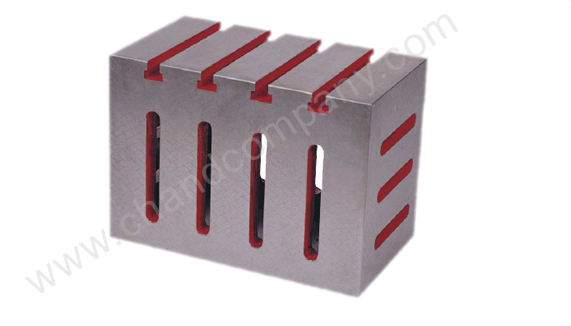

Cast Iron Box Angle Plate

Made Generally as per IS: 6232-1971. Made from good quality close grained with high Density Alloyed Cast Iron Castings Conforming to Grade FG-220 of IS: 210. Stress Relieved Hand Scraped Surfaces. Precision Box Angle plates as per IS-6985-73 on request.

Size in mm (L X B X H)	Flatness In µm	Squareness In µm	Parallelism In µm
125 X 75 X 100	5	10	13
175 X 100 X 125	5	13	15
250 X 150 X 175	8	15	18
350 X 200 X 250	8	18	20
450 X 300 X 350	10	18	20
600 X 400 X 450	10	20	23

Size in mm

125 X 75 X 100

175 X 100 X 125

250 X 150 X 175

350 X 200 X 250

450 X 300 X 350

600 X 400 X 450
