HOME > Arete > Bench Vice > 1131

ARETE Code 1131

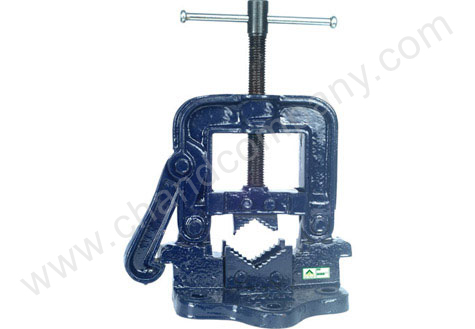

Hinged Pipe Vice
( S.G. Ductile Iron Body )
( Size : 1.1/2", 2", 2.1/2"3, 1/2", 4.1/2", 6" ) Features :

Hinged Pipe vice so called because the frame (containing the main screw and top jaw ) and the base are hinged together.
To grip a pipe the frame is hinged back and the pipe loacted on the lower jaw. When the frame is hinged own a locking hook automatically engages onto the side of the base holding the vice firmly shut. Ideal for fast repetitive work.

Construction :

The replaceable steal jaws are accurately machined, hardened and tempered.
The handle and main screw is also made of steal while the frame and base is made of strong SG ductile Cast Iron.

Application : Enameled oxford blue.

Specifications
Pipe Dia Capacity (in inches)	Pipe Dia Capacity (in mm)	Weight (app. in Kgs.)
1.1/2	40	2.7
2	50	4.1
2.1/2	60	5.7
3.1/2	85	7
4.1/2	115	11
6	150	21

Hinged Pipe Vice 1131

Size in mm	STD. PKG.
40	8
50	8
60	4
85	3
115	2
150	2
